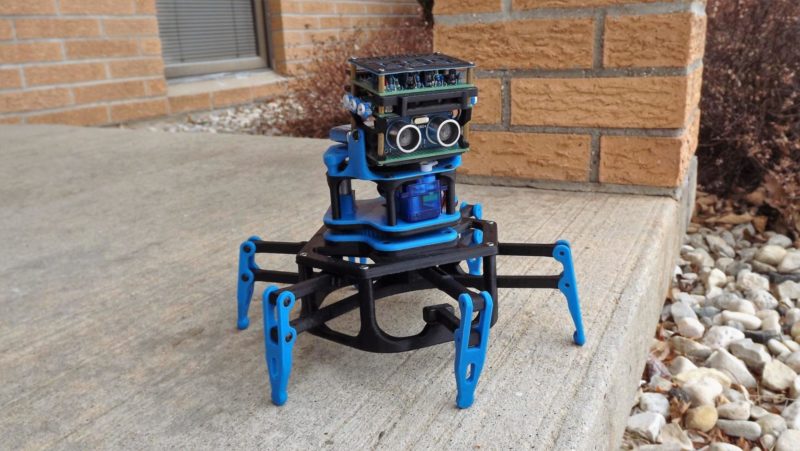

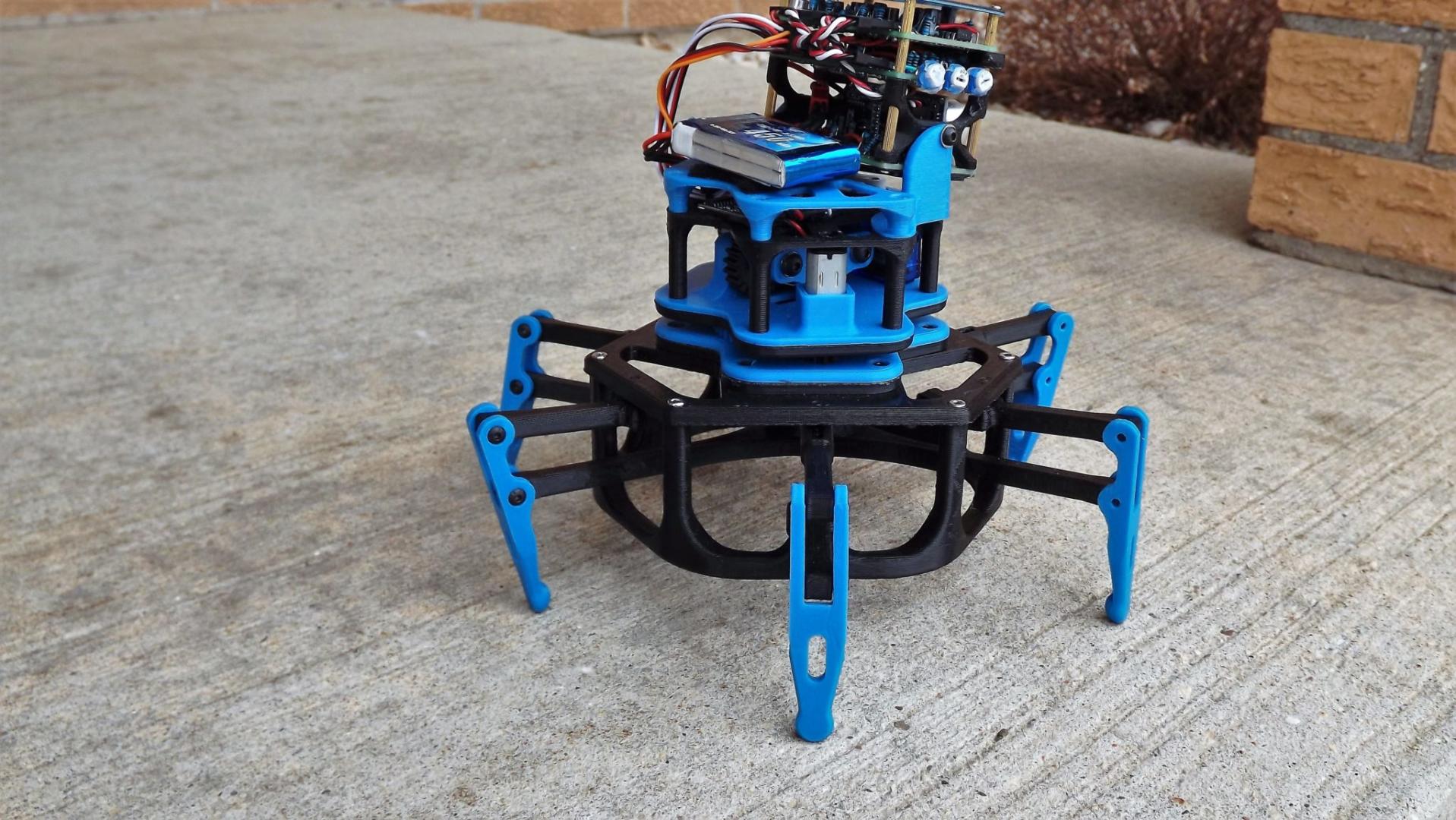

The Pilot Hobbies Pathfinder is an easy to control 6-legged walker, which only requires two motors to allow walking in all 360 degrees, plus a servo for head tilt. The Pathfinder has been designed to be a great introductory educational or learning platform, allowing the creator to focus more on problem solving, sensors, and functional programming of the robot, without the headache of managing multiple servos per leg or complex inverse kinematics equations.
Due to its simple nature, this robot lends itself well to not only microprocessor-based circuits, but also analog circuits and discrete logic gates. My personal build uses a BEAM Robotics style analog circuit, with 555 timers and transistor logic, for all its functions.

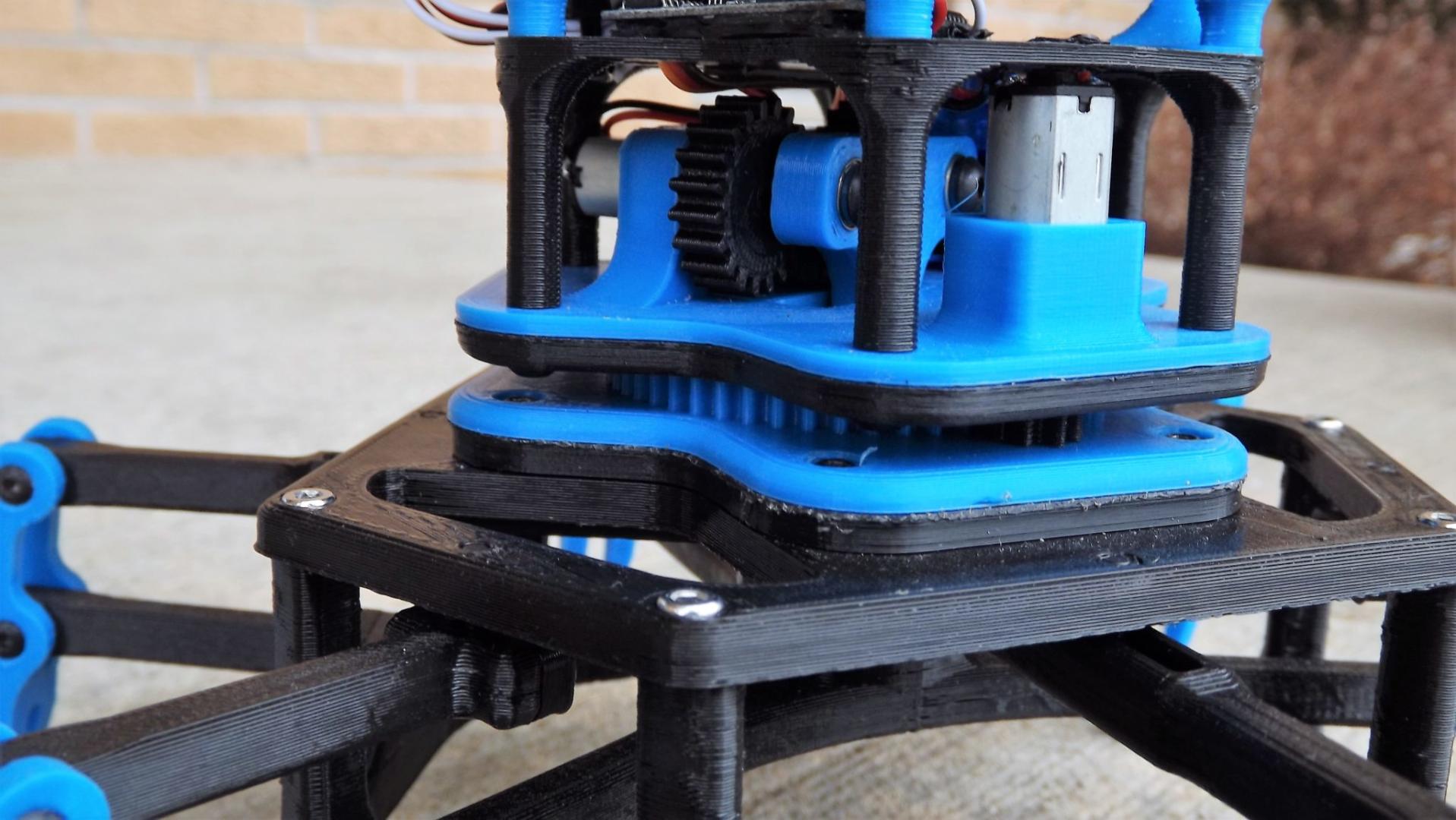

A single N20 Gear-Motor drives the walking mechanism, while a second N20 Gear-Motor rotates the head and drive assembly. This allows extremely easy control, without complicated walking code or servo control. Head panning and tilting is also simple to accomplish for environmental scanning and awareness, with only a single servo controlling head tilt, and panning sharing the same motor control as walking direction.

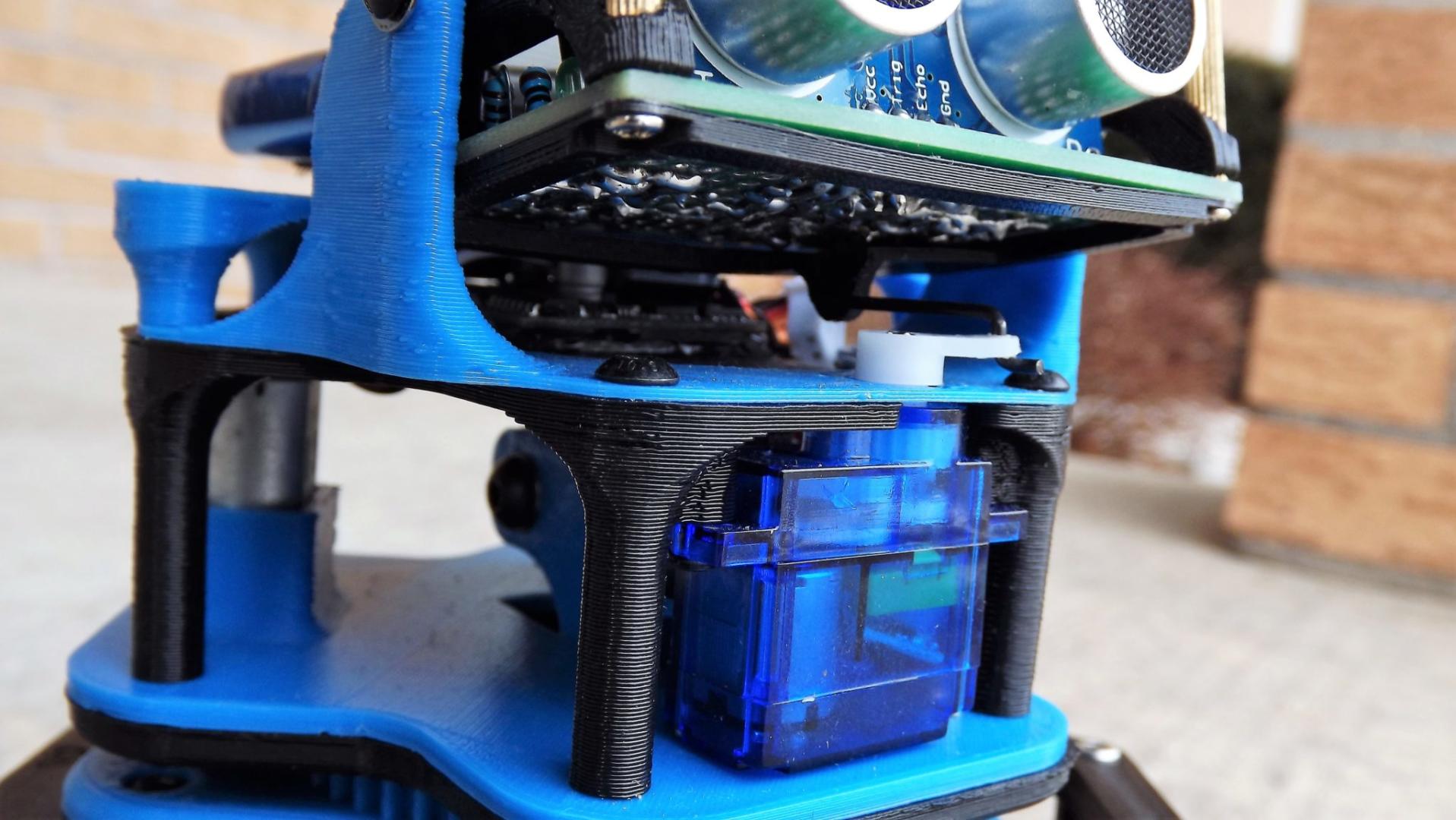

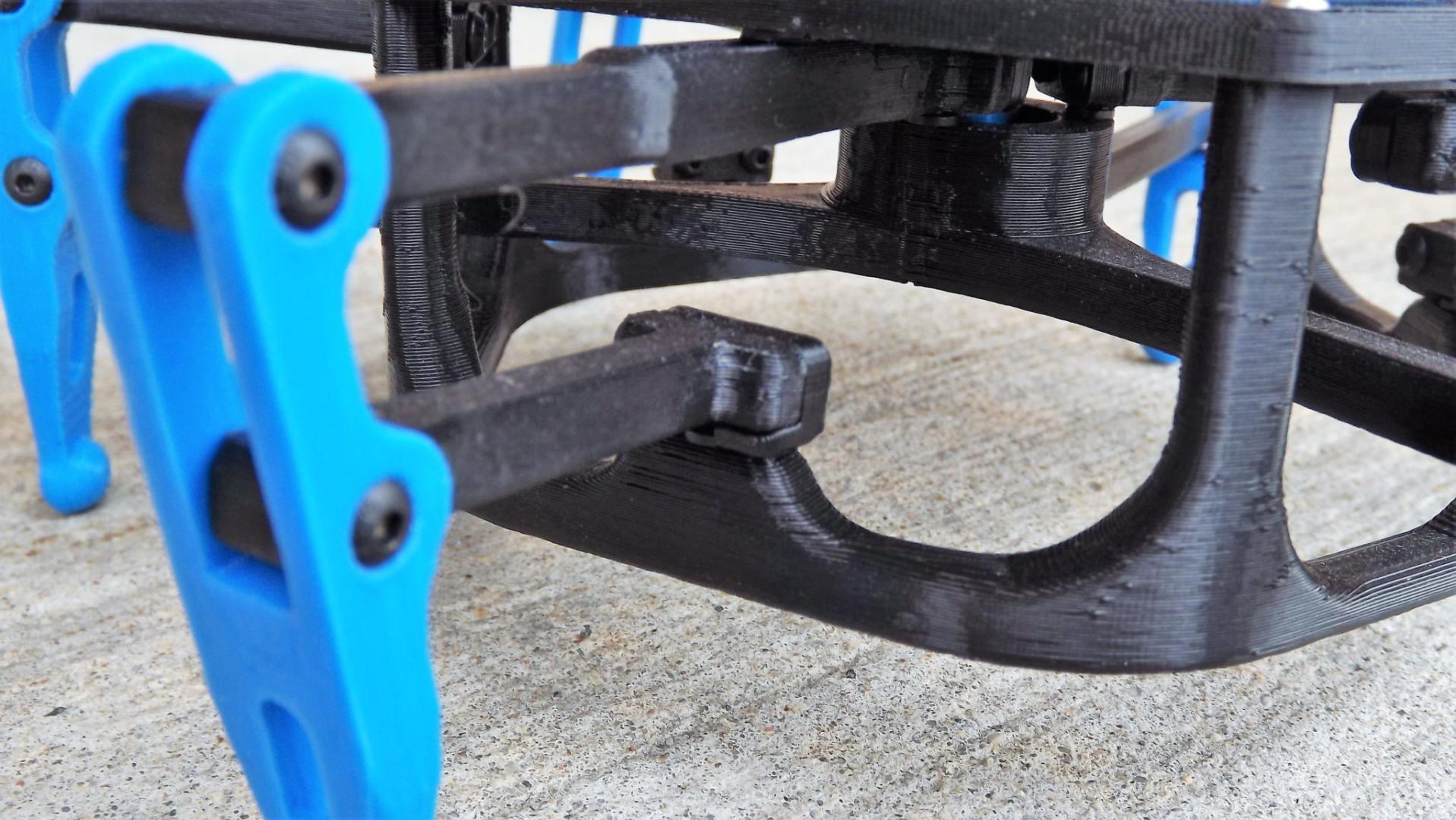

Leg geometries have been tuned to provide optimal traction and minimal slip between legs, making walking efficient on both carpet and hard floors. High stress components use metal ball joints and ball bearings for friction-free operation and long service life. The head is designed to fit an ultrasonic sensor, and is positioned high above everything, ensuring good readings without interference from the ground or mechanical components.

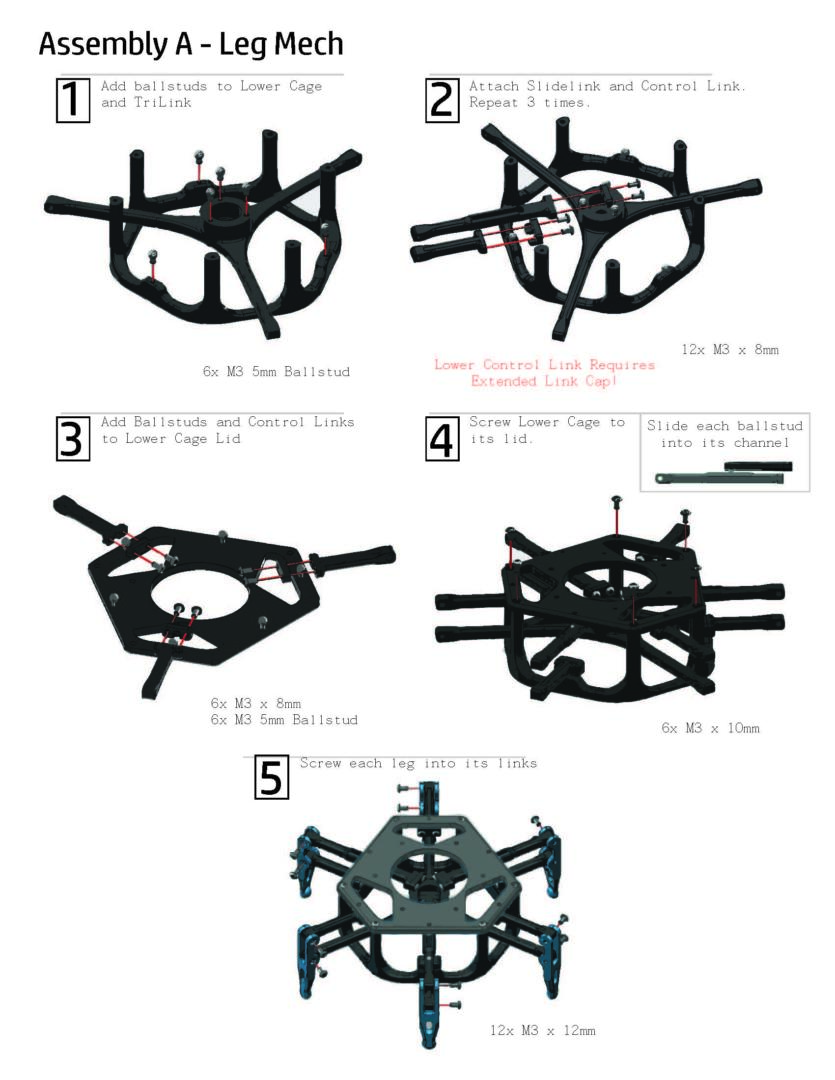

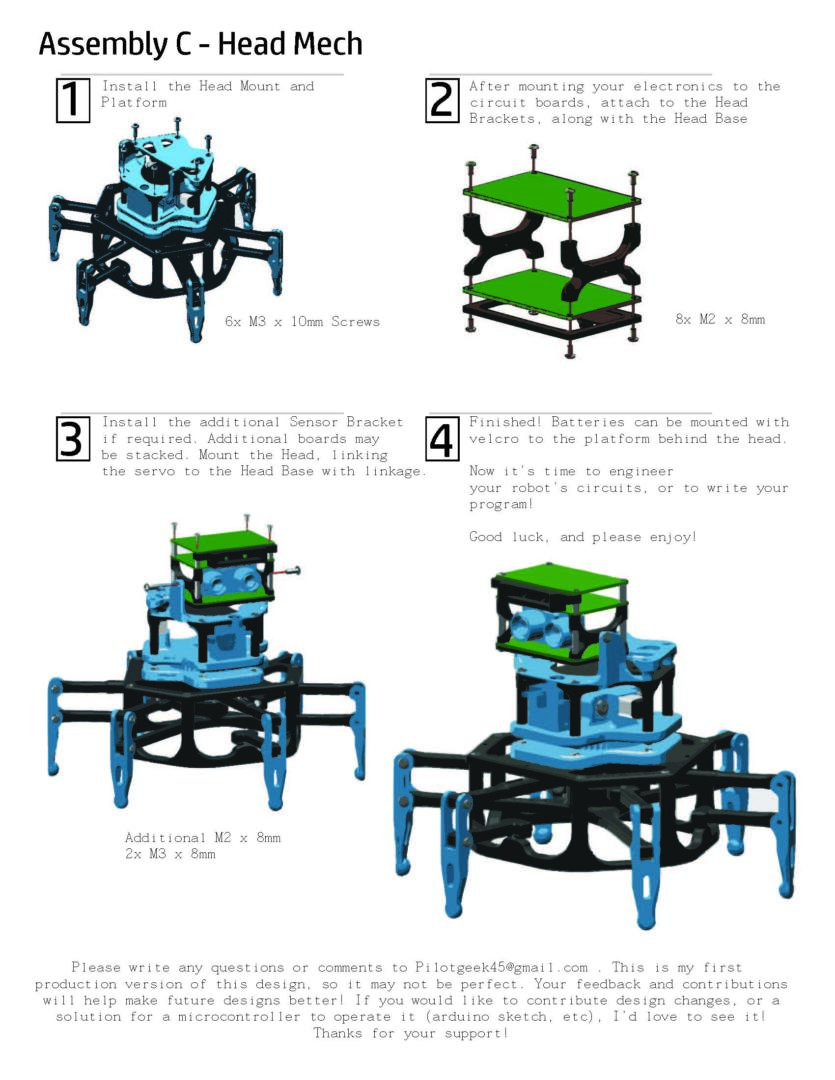

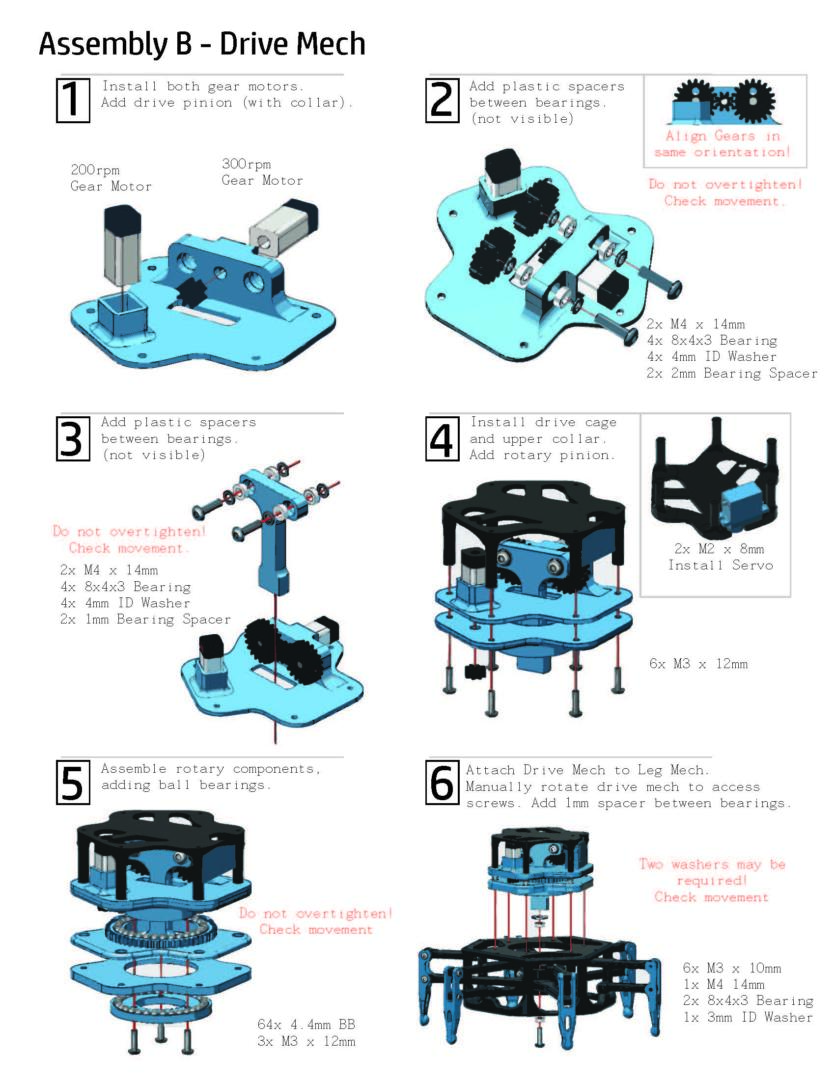

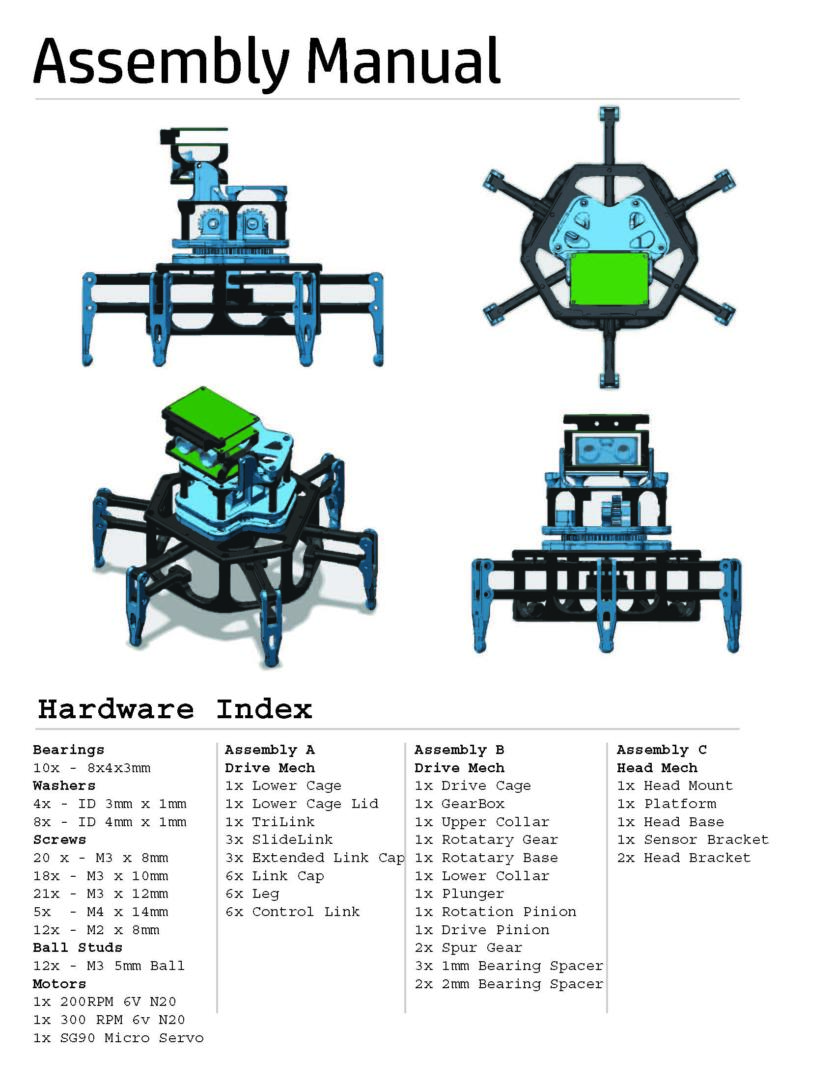

Includes step-by-step full-color PDF manual.
Some parts are print-to-order – Please allow a few days for shipping
Required Parts for Build:
- 2x N20 Gear Motor (200-300rpm for Drive, 100-200rpm for Steer)
- 1x TowerPro 9g Servo
- 10x 8x4x3mm Ball Bearings [Included with Full Kit]
- 64x 4.4mm BB (0.177 Caliber BBs) [Included with Full Kit]
- 12x – M3 Ball Studs – 5mm Ball (Yeah Racing YA-0562) [Included with Full Kit]
- 2x 40x60mm PCB [Included with Full Kit]
- M2 Standoffs (For Head / PCB Mount) [Included with Full Kit]
- One Single Paperclip 🙂 (Head Linkage) [Included with Full Kit]
- Washers [Included with Full Kit]
- 4x 3mm id Washers
- 8x 4mm id Washers
- Screws [Included with Full Kit]
- 20 x – M3 x 8mm
- 18x – M3 x 10mm (M3 x 8mm can be used as well!)
- 21x – M3 x 12mm
- 5x – M4 x 14mm
- 12x – M2 x 8mm
